GIGA LX308N High Speed Automatic Flexo Printer Box Machine

FOB Reference Price:Get Latest Price
US $100,000-300,000 / Sets | 1 Set/Sets of boxmachine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Flexographic Printer
Condition:
New
Plate Type:
Letterpress
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
GIGA LX
Model Number:
GIGA LX308N
Usage:
carton box printing machine
Automatic Grade:
Automatic
Color & Page:
Multicolor
Voltage:
380V 50Hz
Gross Power:
40-48.5kw
Dimensions(L*W*H):
8M*7M*2.2M
Weight:
10-28MT
Certification:
CE ISO9001
Name:
GIGA-LX High Speed Automatic Flexo Printer BoxMachine
Characteristic 1:
9999 order memory Functions of intelligent zero returning memory reset
Characteristic 2:
Set up order very soon
Characteristic 3:
Suitable forsmall and middl-big size carton and many order change
Characteristic 4:
Better machine better carton, so as to Better business.
Product name:
Cardboard Flexo Printer E flute Used
Application:
Support
Printing size:
User Definable
Warranty:
One Year
Printing Material:
corrugated cardboard
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
10 Set/Sets per Month of boxmachine
Packaging & Delivery
Packaging Details
GIGA-LX Automatic Flexo E flute Pizza Box Making Printer Machine :
Strength Packaging: Steel tray + Dryer + Film Covered
Port
shanghai
Lead Time :
120days
Product Description

GIGA LX High Speed Automatic Flexo Printer BoxMachine

Fully Automatic Corrugated Box Machine Main Functions:
1,Touch screen and electric control dual system lx308
2,All transmission gears are made of high quality alloy steel (20CrMnTi) grinded under high temperature with hardness HRC58-62
3,CAPT-LOCKS union link to reduce the connect interval and keep long lasting overprint precision
4,Functions of intelligent zero returning and memory reset 999 order memory
5,Suitable for small and middl-big size carton and many order change
6,The transmission system adopts two oil pumps circulating lubrication
7,Carton box making machine and box making machine are made in good quality.

Detailed Images

GIGA LX High Speed Automatic Flexo Printer BoxMachine

Feeding Unit

Servo control Lead edge feeder

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

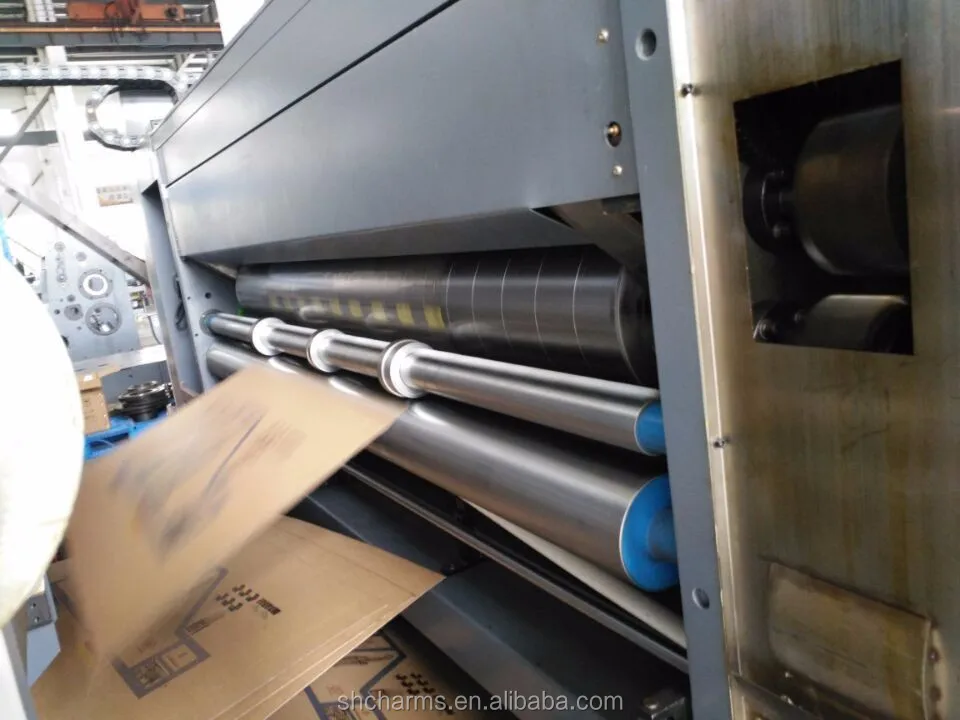

Printing Unit

Carton box making machine rollers made of high quality steel, with grinded and chrome plated surface
Printing machine anilox roller auto lifting device synchronous working with paper feeding system ; Printing phase automatic 360 degree adjust by PLC, touch screen and motorized digital control.

Slotting Unit

Upper scoring wheel coated by polyurethane to avoid possible crush on the paperboard
Transverse movement of scoring wheel, lx308 doctor wheel and slotting head controlled by motorized button control, easy and quick
7 mm thick slotting knives are made of alloy tool steel by heat treatment and finely ground, sharpened endurable teeth
Bi-plate trimming knives with sharpened, endurable teeth.
Planetary gear slot phasing structure
.

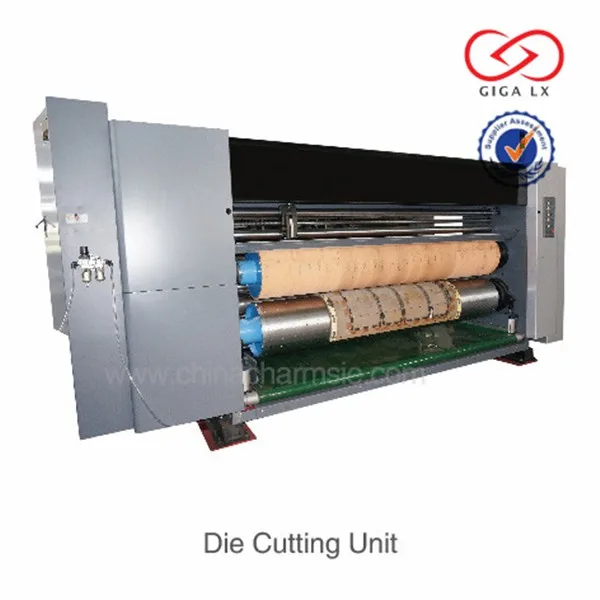

Die Cutting Unit

New adjusting system for die cutter, easy operation adjusting the error and the difference of die cutter'S cardboard.

Box making machine anvil roller and mould roller adopts high-grade steel with finely reground and chrome plated surface. Dynamic balancing correction enhances running stability
Mould roller and anvil roller can be apart by the air cylinder eccentric mechanism during non-working condition in order to decrease the load of the machine and to prolong the life of the cutting mould and urethane rubber

Model: LX308N
1800/2200x1000
2500x1200/1400/1600
2800x1200/1400/1600
3200*1600
Max.machine speed(pcs/min)
250
200/180/150
160/150/130
130
Max. feeding size(mm)
1800/2200*1000
2500×1200/1400/1600
2800×1200/1400/1600
3200*1800
Skip feeding size(mm)
1800/2200*1200
2500×1400/1600/1800
2800×1400/1600/1800
650*400
Min.feeding size(mm)(kicker feeder,lead edge feeder)(mm)
650*270
650×330/350/500
650*330/350/400
650*400
Max.printing area(mm)
1750/2150×950
2450×1180/1330/1550
2750×1180/1330/1580
3150*1580
Standard printing plate thickness(mm)
7.2
7.2
7.2
7.2
Max.feeding depth(mm)
2-10
2-12
2-12
2-12
Positive Slotter cut:
140*140*140*140
140*140*140*140
140*140*140*140
140*140*140*140
Reverse Slotter cut:
200*60*200*60
240*70*240*70
240*70*240*70
240*70*240*70
Max.die-cutting size(mm)
1700/2100*930
2400*1150/1310/1550
2700*1150/1310/1550
3100*1550

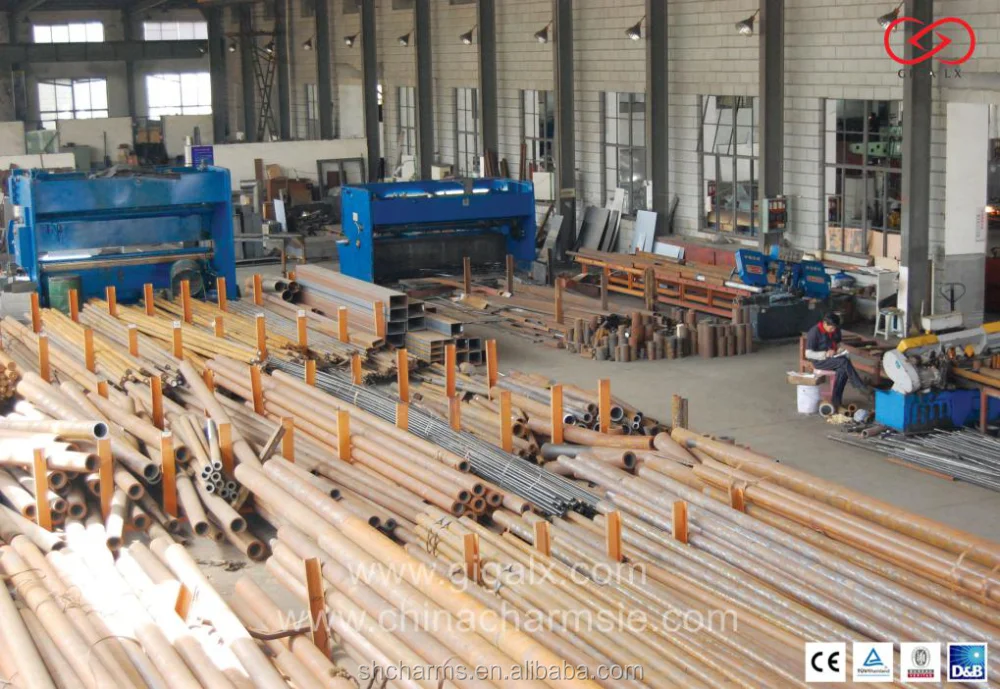

Our Company

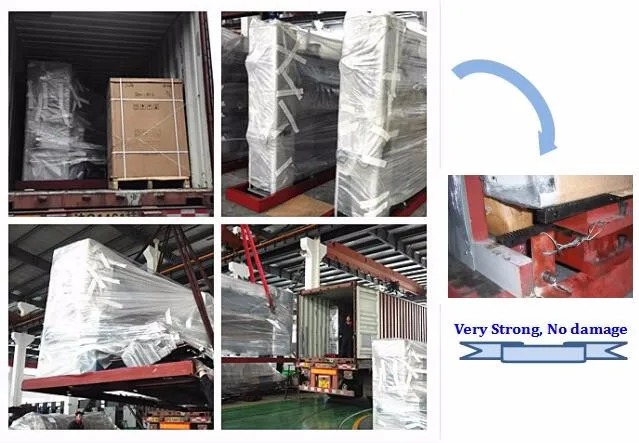

Packing & Delivery

GIGA LX High Speed Automatic Flexo Printer BoxMachine

Strength Packaging: Steel tray + Dryer + Film Covered
To prevent the machine in the marine moisture corrosion

Our Service

We provide loan to below business situation

The value of order over RMB 1 million.
Only for carton machine LX308N, LX-608CN LX707N or corrugated machine production line include LXC-180NN, LXC-220H1.8N models.
We accept O/A (Open account), it based on the credit level of buyer's bank credit report.

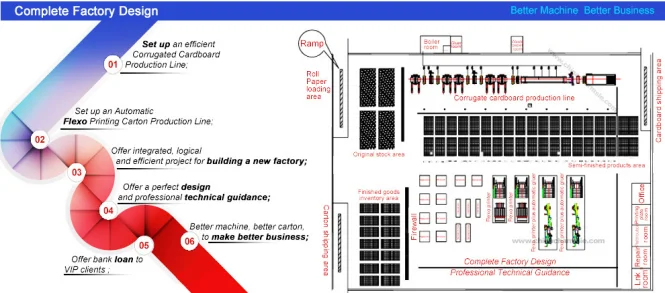

Layout Drawing

This is 10000 M2 layout drawing sample of CORRUGATED LINE AND FLEXO CARTON PRINTING FACTORY.

A.Warranty: Life-long maintenance, engineers fly to you every year
B.Offer economic provide efficient, complete plant system solutions and factory design.

Certifications
Related Products

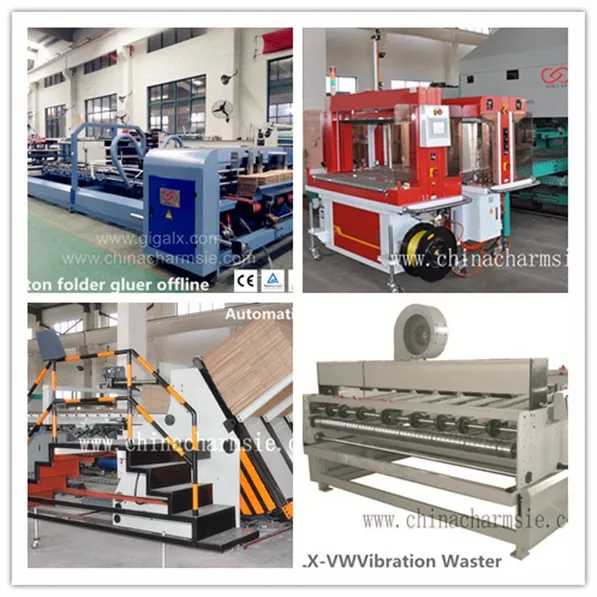

Optional: for GIGA LX High Speed Automatic Flexo Printer BoxMachine

1, LXFG-Gluer and floder machine(in-line/off-line);
2, UV dryer OR dryer;
3, LX-Automatic Stacker unit;
4, LX-VWVibration Waster;
5,LXMHC-Semi-automatic Flat Die Cutting Machine;
6, LXTF Tiger Flat Die Cutting Machine

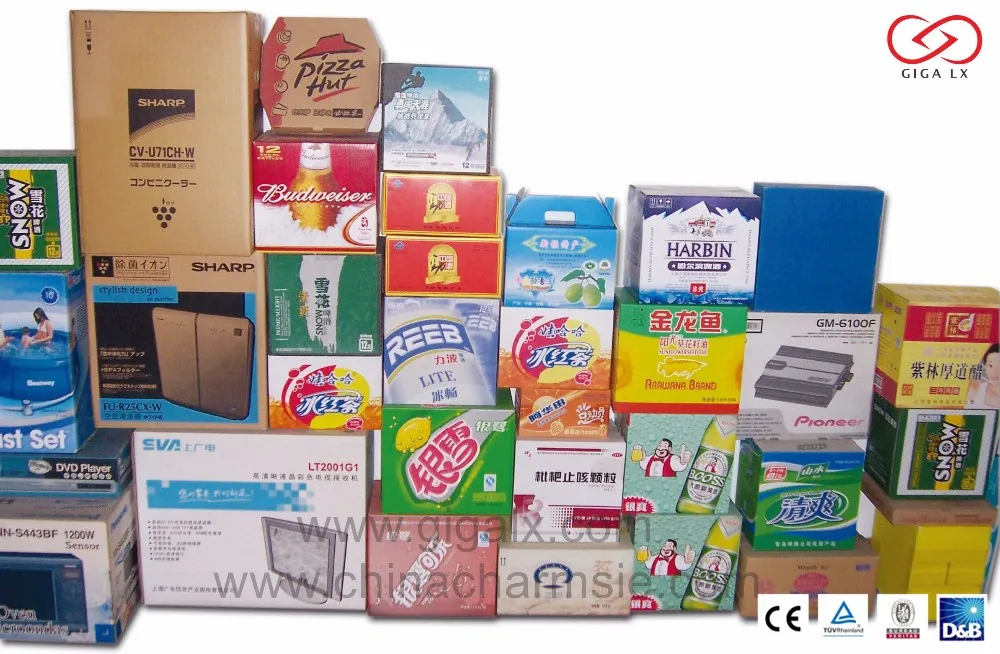

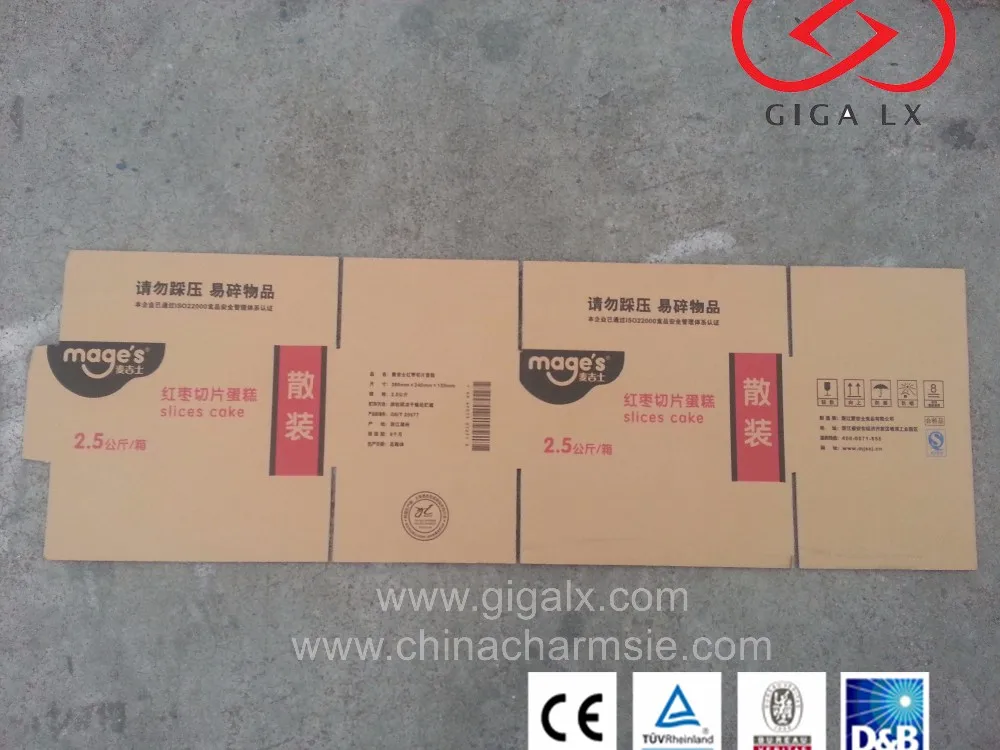

Printed Sample
