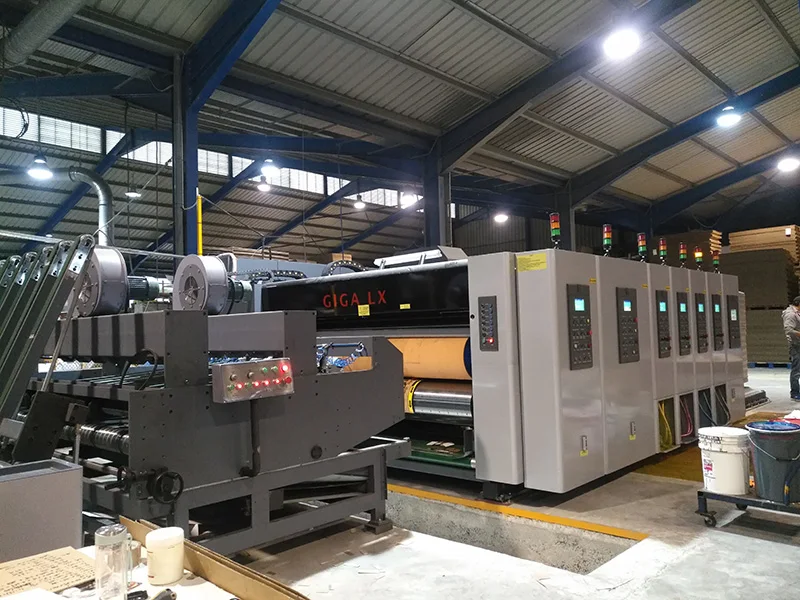

flexo carton printing machine:
In steel pallet or and plastic film covering
PORT OF SHANGHAI
(mm)Max feeding size
(mm)Min feeding size
(mm)Skip feeder size
(mm)Max printing size
(mm)Print plate depth (mm)
(mm)Min slotter interval
(mm)Max die cutter size
Main Features 1. Servo control lead edge feeder;(Big servo motor control,vacuum suction, 2 or 3 or 4 shafts as per customer requirement,
improve feeder cardboard accuracy and stable)
2. Vacuum suction conveyor for printer;( printer units adopt full vacuum suction,can be equipped doctor blade)
3. Memory order 9999 pieces
4.E/F flute type cardboard could be used for printing carton,normally machine only print A/C/B flute 5. Slotter with intelligent photoelectric 6. With new NC adjusting system for die cutter; (this amazing system is to keep die cutter accuracy, prolong the machine life)
7. Remote after service can be realized;(we can in China to maintaining and debugging the printing machine in overseas)
Feeding Unit 1. Servo control lead edge feeder, servo motor-quick react, precision positioning system stability and durability. 2. Electrical camshaft supersedes mechanical style. Synchronous belt un-interval links feeding shaft with servo motor shaft, to improve feeding precision alignment.Half-wheel, quick replacing surface of feeding wheel. 3. Working speed and quantity digital display. Synchronous working of automatic feeding and anilox roller to reduce waste;Equipped with dust suck removing device to improve printing quality
Printing Unit Printing roller shaft head tempered, all tube stress relief treatment, and temper treatment, all pipe stress tempering treatment.Seamless pipe with grinded, chrome plated surface.Phase 360 degree adjust by PLC control touch screen display(stop and run). Phase adjust precision 0.15 mmPneumatic diaphragm pump offers stable ink supply, easy operate and maintenance
Slotting Unit Scorer wheel gap, turbo box electric adjustable, graduated disc display adjust range -mm.Alloy tool steel with heat treatment, grinded slot teeth, good hardness and toughness.Scorer wheel, guide wheel, slot knife seat synchronous transverse displacement, PLC touch screen and electric button dual control. Planet gear structure, absolute value plate positioning, auto zero.
Die Cutting Unit Mould roller and anvil roller can be apart automatically by the air cylinder eccentric mechanism during non-working condition in order to decrease the load of the machine and to prolong the life of the cutting mould and urethane cover. Urethane (rubber) cover can be fixed, can repeatedly correct urethane cover then use it. Alloy steel seamless pipe grinded and chromed coated.Urethane cover roller have servo
With 25 years experience of carton machinery, our businesses now have covered CIS, Latin America, Middle East, Europe,
North America, Southeast Asia etc..
Professional design team, offering free foundation of the whole plant; Well-trained electrical engineers and mechanics offering installation, maintenance and workers training, till the capacity and
performance of the machine were accepted by buyers.
1 We provide whole establish new factory solution , give customer a comprehensive design plant idea, consider the
target customer market . We own a great team , engineer service to oversea country is available.
2 After-Sales Service 1) Engineers available to service machinery overseas.(including installation, debugging, training etc.) 2) Whole machine main parts guarantee for 1 year. 10 years warranty for main transmission gear ensure print accuracy. 3) 25 years experience, reply within 12 hours, provide solve solution within 24 hours.
3 We provide loan to below business situation 1) use first 2) payer later 3) special service we can provide financial support for your project. Mutual trust is the foundation of our business.
