GIGA LX 608CN Automatic Corrugated Box Stitching Machines For Packaging

FOB Reference Price:Get Latest Price
US $150,000-400,000 / Sets | 1 Set/Sets Mixed order accept (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
carton box making and printing mahcine
Packaging Type:
in steel pallet
Packaging Material:
Metal, Paper, Plastic
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V
Power:
40-48.5kw
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
GIGA LX
Model Number:
LX 608CN
Weight:
10-28MT
Dimension(L*W*H):
8M*7M*2.2M
Certification:
CE Certificate
After-sales Service Provided:
Engineers available to service machinery overseas
Style:
Making box and different color print
Characteristic:
Dual system of touch screen man-machine interaction
Characteristic 1:
Servo Control Lead Edge Feeder or with Pressure-free feeding system
Characteristic 2:
Computerized, made of high-quality alloy steel 20CrMnTi
Characteristic 3:
Vacuum suction conveyer for printer is option
Advanced equipments:
CNC machining center, milling machine, high precision grinding machine
Supply Ability
Supply Ability:
10 Set/Sets per Month 10-16
Packaging & Delivery
Packaging Details
Corrugated Box Machinery IN STEEL PALLET
Port
PORT OF SHANGHAI
Lead Time :
78-95

GIGA LX 608CN Automatic Corrugated Box Stitching Machines For Packaging





Main Features
1. Servo control lead edge feeder;(Big servo motor control,vacuum suction, 2 or 3 or 4 shafts as per customer requirement, improve feeder cardboard accuracy and stable)

2. Vacuum suction conveyor for printer;( printer units adopt full vacuum suction,can be equipped doctor blade)

3. Memory order 9999 pieces

4.E/F flute type cardboard could be used for printing carton,normally machine only print A/C/B flute
5. Slotter with intelligent photoelectric
6. With new NC adjusting system for die cutter; (this amazing system is to keep die cutter accuracy, prolong the machine life)

7. Remote after service can be realized;(we can in China to maintaining and debugging the printing machine in overseas)



Product Display

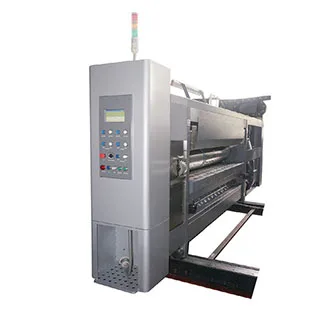

 Feeding Unit
1. Servo control lead edge feeder, servo motor-quick react, precision positioning system stability and durability.
2. Electrical camshaft supersedes mechanical style. Synchronous belt un-interval links feeding shaft with servo motor shaft, to improve feeding precision alignment.Half-wheel, quick replacing surface of feeding wheel.
3. Working speed and quantity digital display. Synchronous working of automatic feeding and anilox roller to reduce waste;Equipped with dust suck removing device to improve printing quality

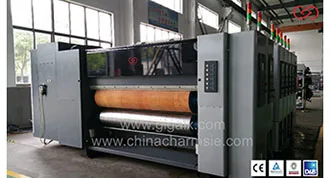

Printing Unit
        Printing roller shaft head tempered, all tube stress relief treatment, and temper treatment, all pipe stress tempering treatment.Seamless pipe with grinded, chrome plated surface.Phase 360 degree adjust by PLC control touch screen display(stop and run). Phase adjust precision 0.15 mmPneumatic diaphragm pump offers stable ink supply, easy operate and maintenance

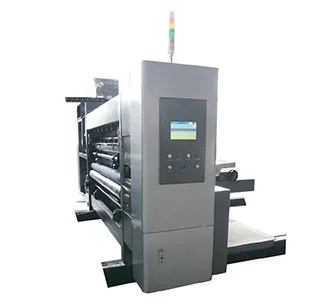

Slotting Unit
        Scorer wheel gap, turbo box electric adjustable, graduated disc display adjust range -mm.Alloy tool steel with heat treatment, grinded slot teeth, good hardness and toughness.Scorer wheel, guide wheel, slot knife seat synchronous transverse displacement, PLC touch screen and electric button dual control. Planet gear structure, absolute value plate positioning, auto zero.

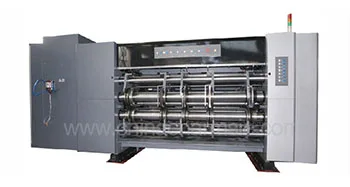

Die Cutting Unit
        Mould roller and anvil roller can be apart automatically by the air cylinder eccentric mechanism during non-working condition in order to decrease the load of the machine and to prolong the life of the cutting mould and urethane cover. Urethane (rubber) cover can be fixed, can repeatedly correct urethane cover then use it. Alloy steel seamless pipe grinded and chromed coated.Urethane cover roller have servo





Specification

1800/2200*1000

2500*1200/1400/1600

2800*1200/1400/1600

3200*1600

Max.machine

Speed ( pcs/min)

220

180/150

160/150

140

Max,feeding size

(mm)

1800/2200*1000

2500*1200/1600

2800*1200/1600

3200*1600

Min.feeding size

(mm)

650*400

650*450/500

650*450/500

650*500

Skip feeding size

(mm)

1800/2200*1200

2500*1400/1800

2800*1400/1800

3200*1800

Feeding depth

(mm)

2-10

2-10

2-10

2-10

Max.printing size

(mm)

1750/2150*950

2450*1180/1580

2750*1180/1580

3150*1580

Thickness of stand flexo printing plate

(mm)

7.2

7.2

7.2

7.2

Min slotter gap (mm)

Positive cut (mm)

120*120*120*120

140*140*140*140

140*140*140*140

140*140*140*140

Reverse cut (mm)

200*60*200*60

240*70*240*70

240*70*240*70

240*70*240*70

Max. die cut area (mm)

1700/2100*930

2400*1150/1550

2700*1150/1550

3100*1550



Printing Samples



Running case

- LX-608C Before ship to South America



- LX-608C Before ship to Southeast Asia



Work Shop



Company Information

GIGA LX Carton Machinery, specialized in manufacturing and export distributing of:
- Corrugated Cardboard Production Line (Corrugator for cardboard making);
- Computerized High-Speed Flexo Printer Slotter Die-Cutter (Carton box machine)


With 25 years experience of carton machinery, our businesses now have covered CIS, Latin America, Middle East, Europe, North America, Southeast Asia etc..
Professional design team, offering free foundation of the whole plant;
Well-trained electrical engineers and mechanics offering installation, maintenance and workers training, till the capacity and performance of the machine were accepted by buyers.



All-year service provides as follows:
1.All-day service;
2.GIGA LX Experts provide strong support;
3.Provide continuous assistance to global equipment;
4.Through rapid support, solve problems, improve production safety;
5.Spare parts shipped within 24 hours;
6.Provide effective support and assistance for maintenance and service issues through remote service assistance.

Our Customers

Better machine better carton, so as to Better business.

Our Exhibition

CE ,SGS and Quality Control Certificate



Our Services

We provide whole establish new factory solution , give customer a comprehensive design plant idea, consider the target customer market . We own a great team , engineer service to oversea country is available.



We provide loan to below business situation
1, use first
2, payer later
3, special service
we can provide financial support for your project.
Mutual trust is the foundation of our business.



After-Sales Service
1,Engineers available to service machinery overseas.(including installation, debugging, training etc.)
2, Whole machine main parts guarantee for 1 year. 10 years warranty for main transmission gear ensure print accuracy.
3, 25 years experience, reply within 12 hours, provide solve solution within 24 hours.
